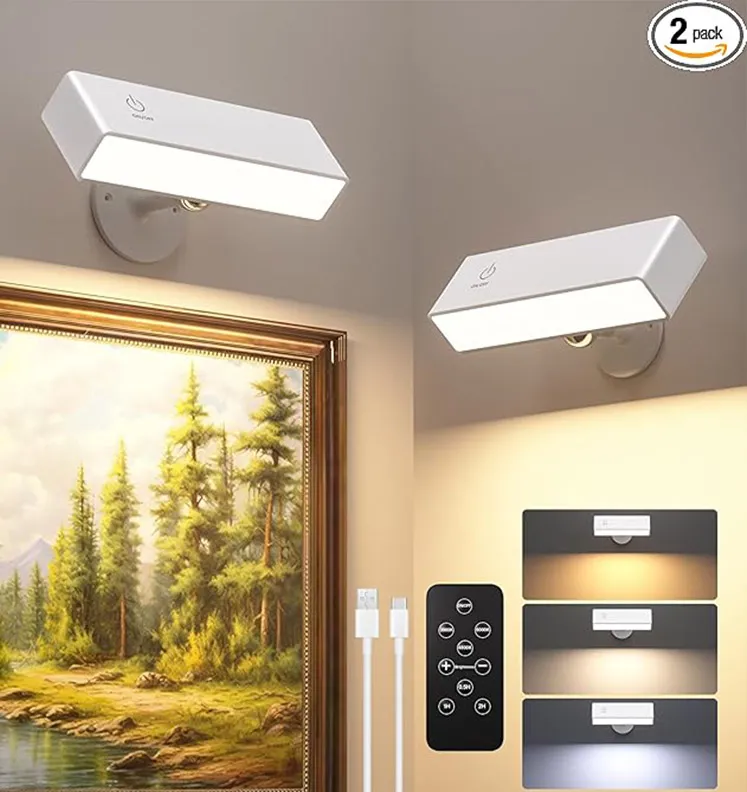

E-LOVER LED Wall Reading Light
Datasheet
E-LOVER Security USB Type-C Rechargeable Reading Lights
Upgrade your bedroom, wardrobe, cabinet with extremely durable reading light from E-LOVER. It’s installed on the wall wherever you want.
Equipped with ultra bright LEDs and a compact modern design, It is a reliable, long-lasting solution for additional home security and stylish illumination throughout the night.

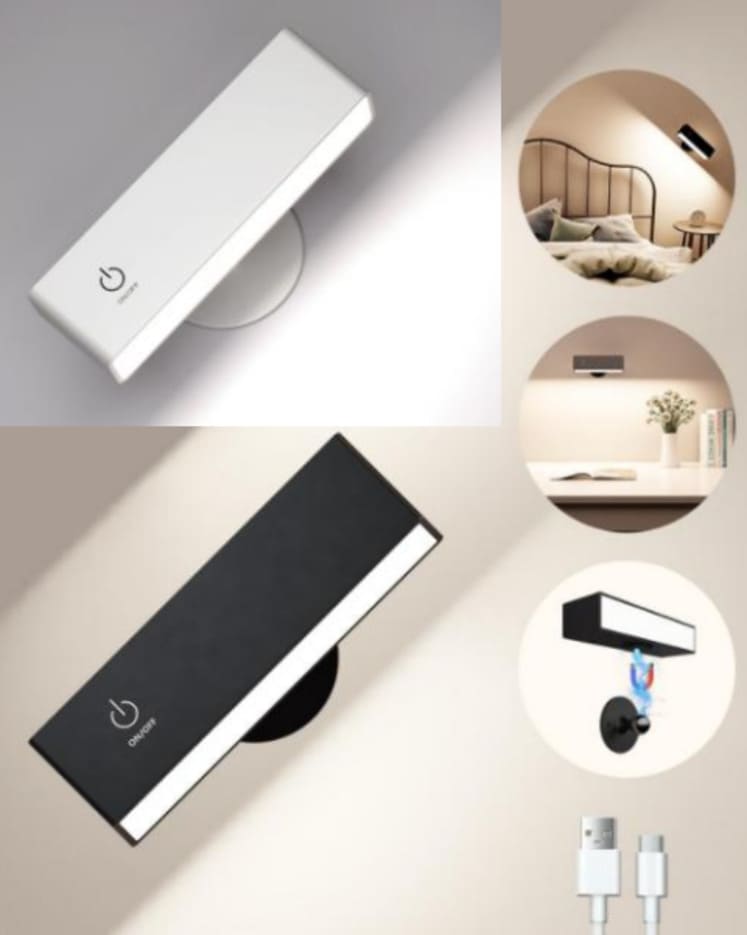

Comes with strong magnetic suction to fix the lamp, it is widely used for indoor anywhere.
Benefits
● Battery Type: With 3000mAh built-in battery, it will be 4-6 hours USB Type-C full charge and last 8~24 hours.
● Portable, Magnetic, Touchable, Dimmable
● White Plastic material, delicate design with luxury
●360 degree rotating lamp
● Lighting Source: ultra bright LEDs, 120 degree illumination

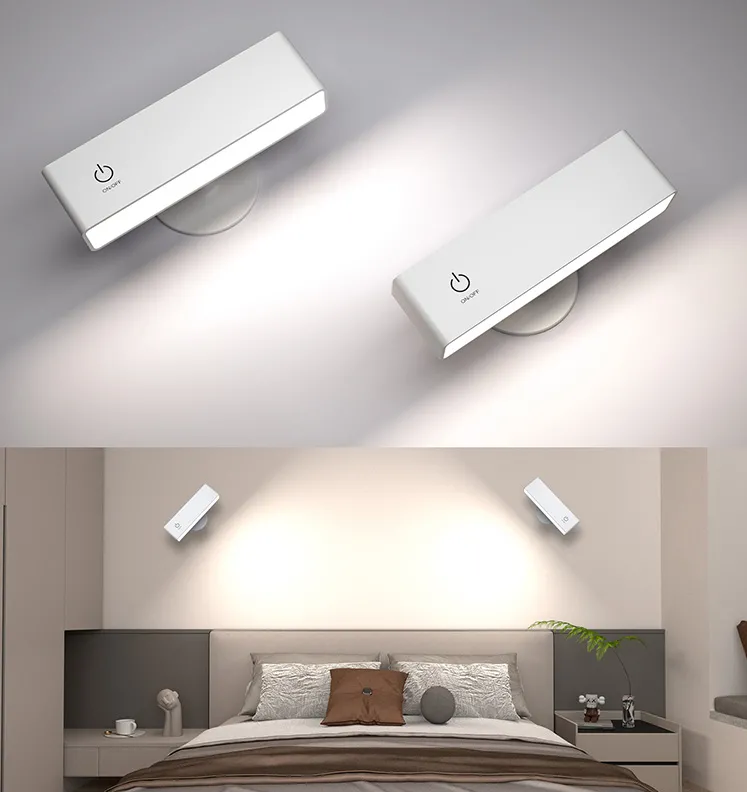

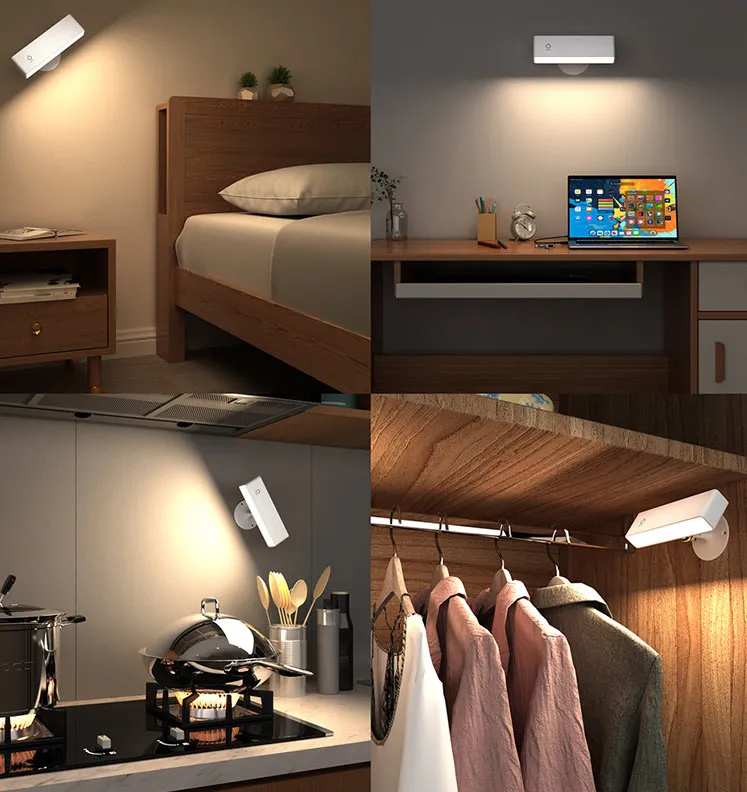

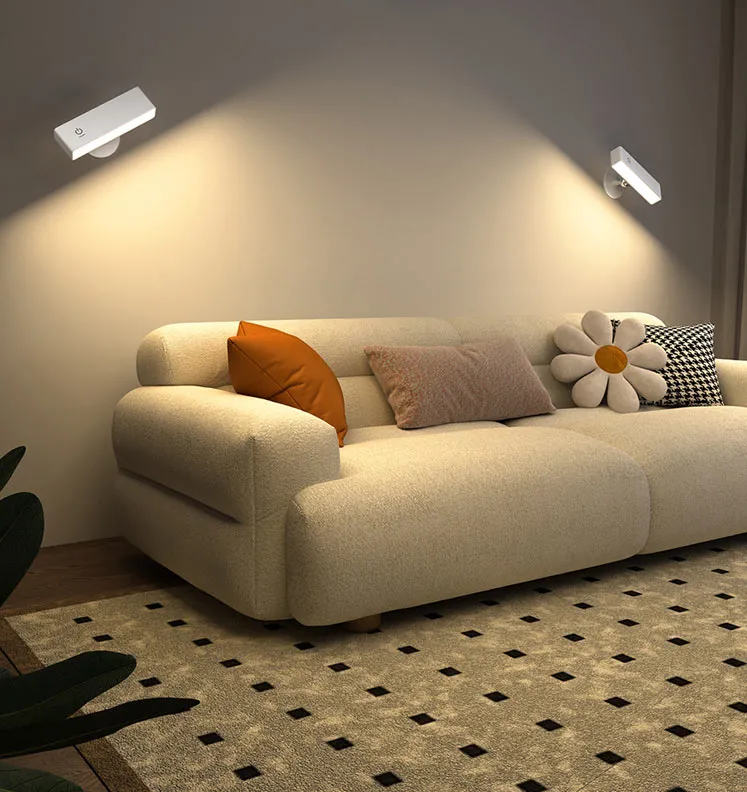

Applications
● Bedside
● Wardrobe
● Cabinet
● Living room
● Kitchen
● Mirror lighting
Working Principle
Automatic USB Type-C charge 4-6 hours and then discharge 8~24 hours.
Battery
With 3000mAh built-in Li-battery. Over 2000 times cyclic charge-discharge, good performance at high temperature resistance, eco-friendly.
LED Chips
Philips 2835 chips, Lifetime over 50000 hours, High brightness and low light decay
Lighting Sensor
Dimmable 10%~100% brightness
Frame Structure
Made of strong PC material
Technical Data
Code | EL-BSY-01 / EL-HSY-01(1pack / 2pack) |
Power | 2W |
Luminous Flux | 240lm |
Li- Battery | 2700mAh 3.7V |
LED Chips | Philips 2835 chips |
CCT | 4000K/CCT 3000K/4500K/6000K |
CRI (Ra) | >80 |
Beam Angle | 120° |
Charging Time | 4-6 H |
Discharge Time | 8~24 H |

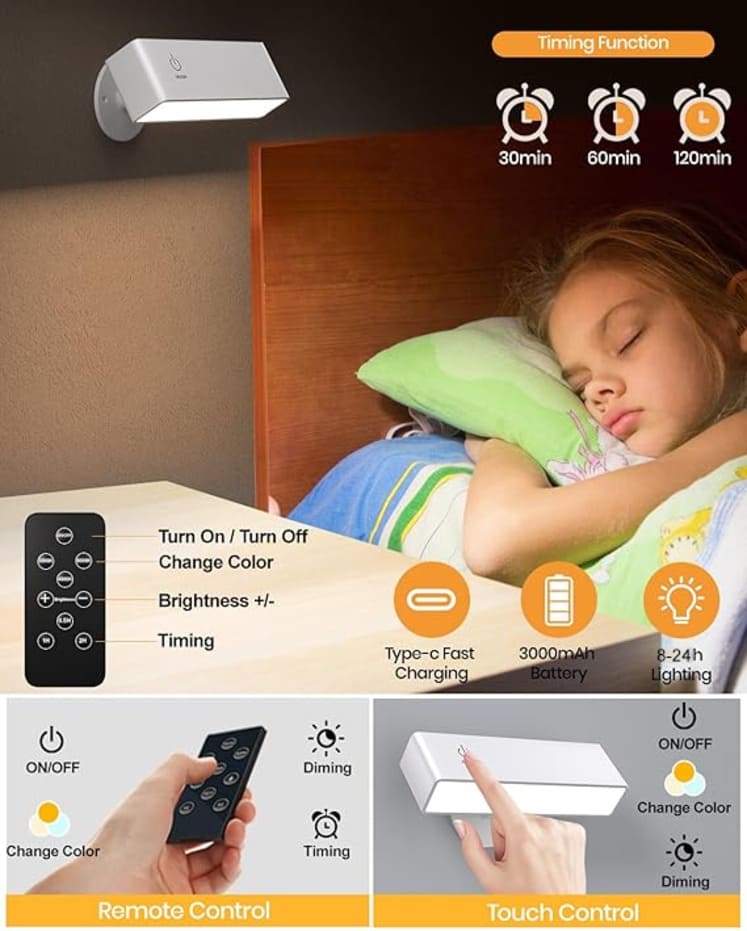

Control Mode | Touch control/Remote control |
Switch | Control the Status ON and OFF |
IP Rate | Indoor IP20 |
Housing | Black / White Plastic |
Dimmable | 10%~100% brightness |
Mounting Type | Wall |
Warranty | 1 Year |
Packing
Dimension
No. | Lumens | Lamp size (mm) | NW Weight (g/pc) |
EL-BSY-01/EL-HSY-01 | 120lm/w | L150*W30*H43 | 320 |
EL-BSY-02/EL-HSY-02 | 120lm/w | L150*W32*H43 | 600 |

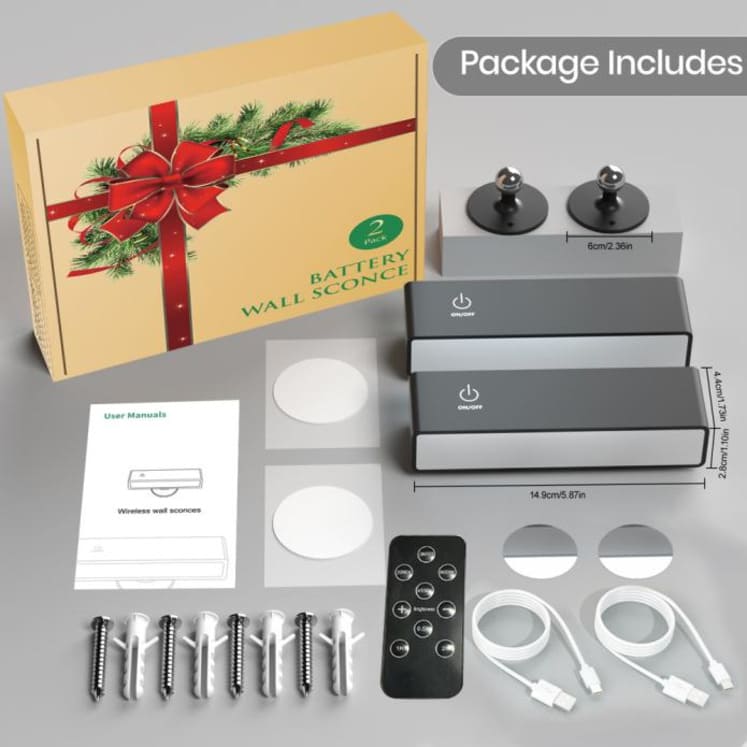

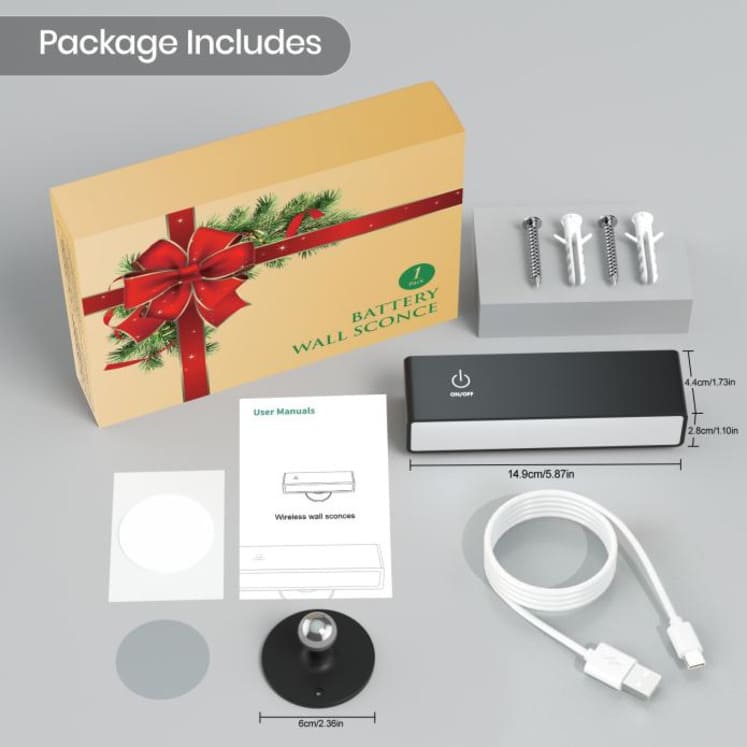

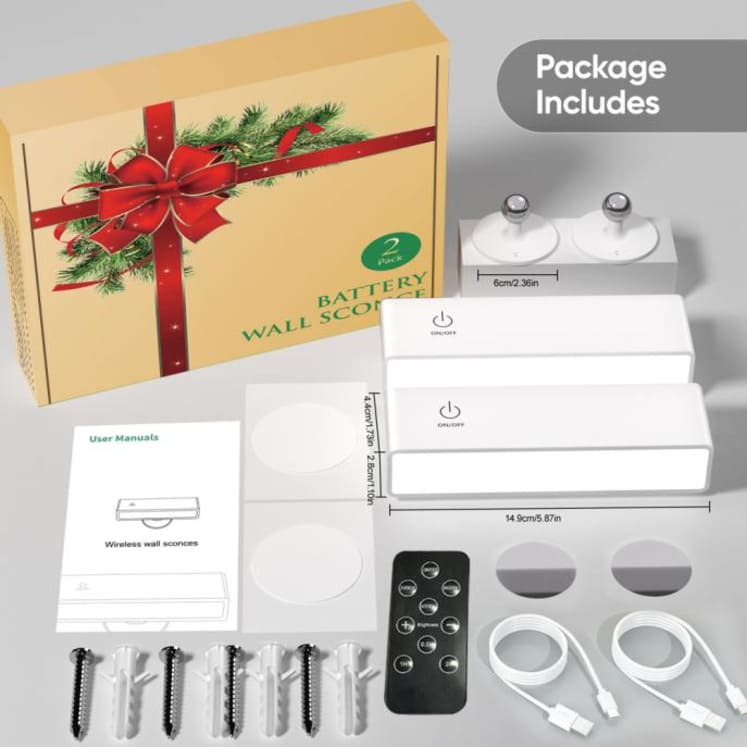

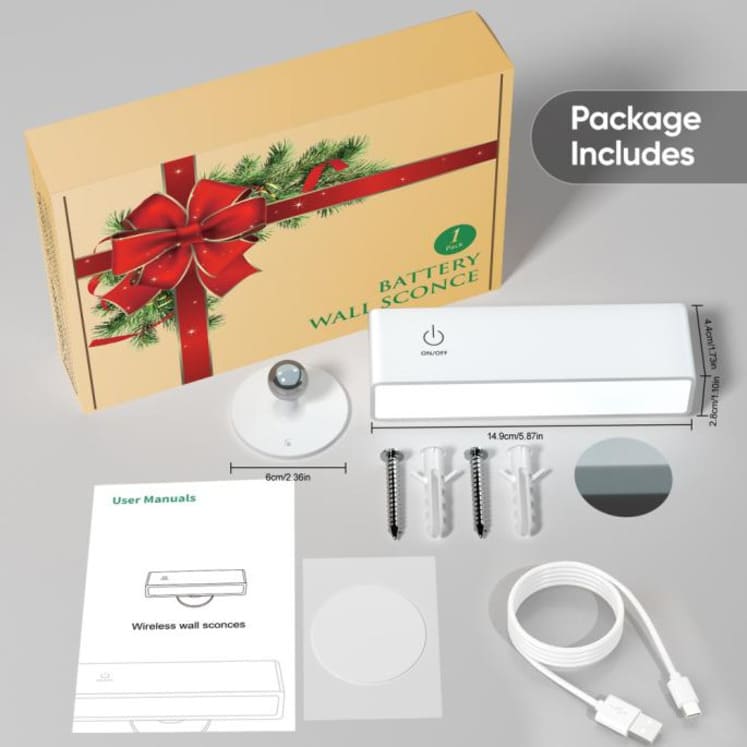

Package
No. | Brown box | Shipping CTN (cm) | GW/CTN |
EL-BSY-01/EL-HSY-01 | 1 pc/box | Box*48/CTN, 53*37*25 | 15.9KG |
EL-BSY-02/EL-HSY-02 | 2 pc/box | Box*32/CTN,53*37*37cm | 19.7KG |

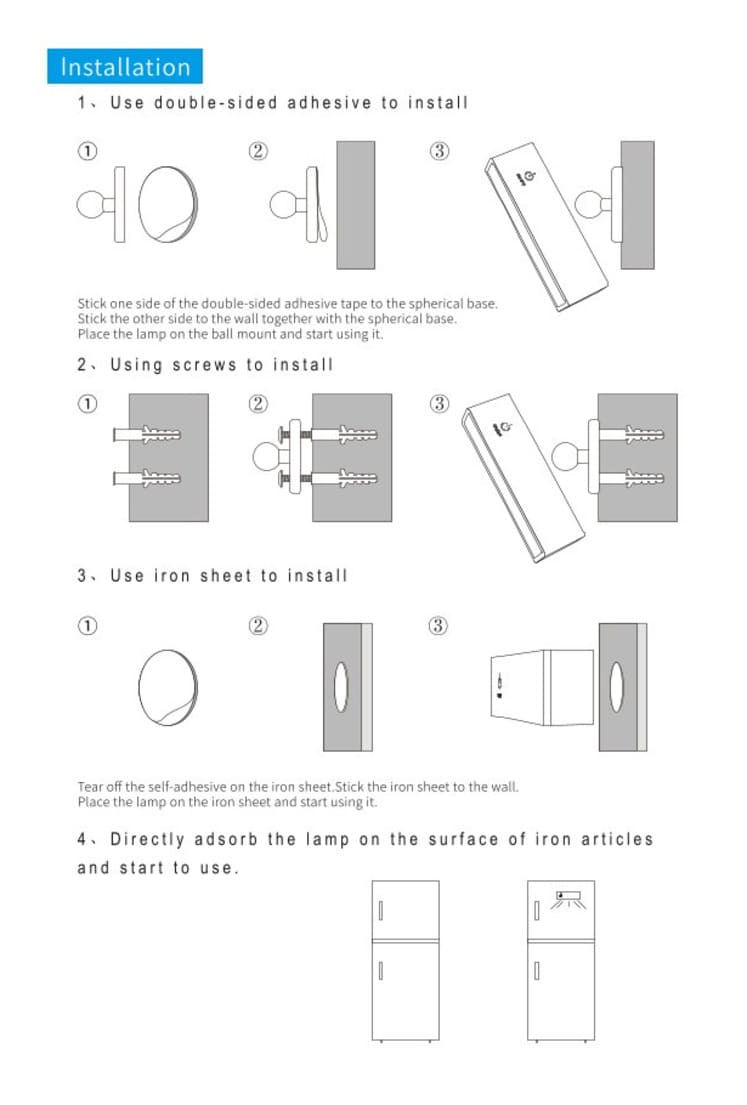

User Manual

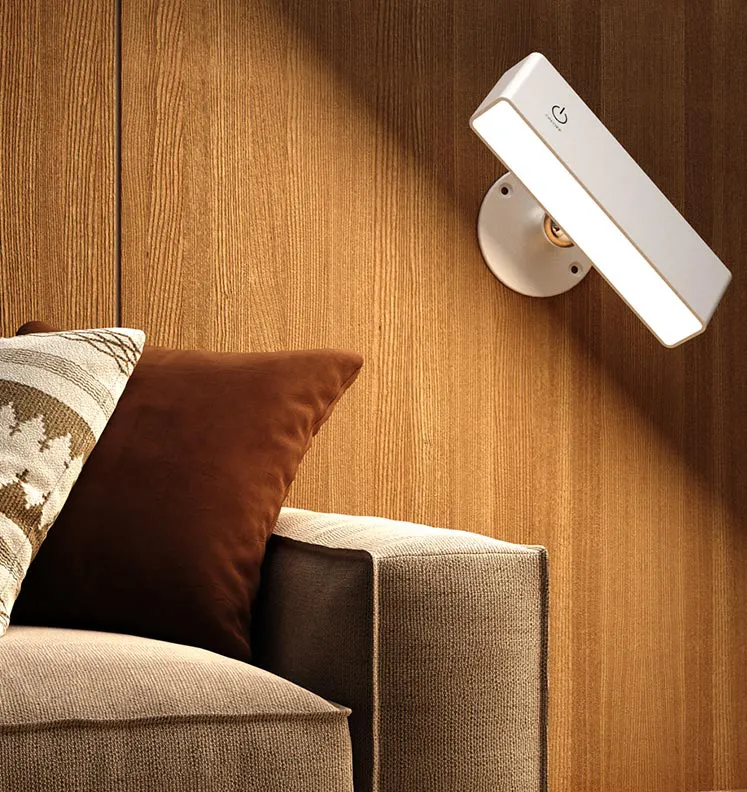

Applications
