LED RGB Ceiling Light
Data sheet
E-Lover LED ceiling light Series state of the art design with low light decay, high color rendering index LED chip source light and high quality driver fill in a high brightness and long lifespan.
●LED driver contact with the heatsink directly and the heat dissipation is much stronger.
●High color rendering index Philips LED chips(50000 hours Lifespan) source light with high-quality.
●The cooling structure is under patent protection (included the appearance).
●Low temperatures. Long lifespan more than 50000 hours.
●No mercury and lead. No UV. No infrared. No radiation. Without causing any flickering, helpful to protect the eyes.
●CE (TUV) for EMC and LVD approved and RoHS compliant.

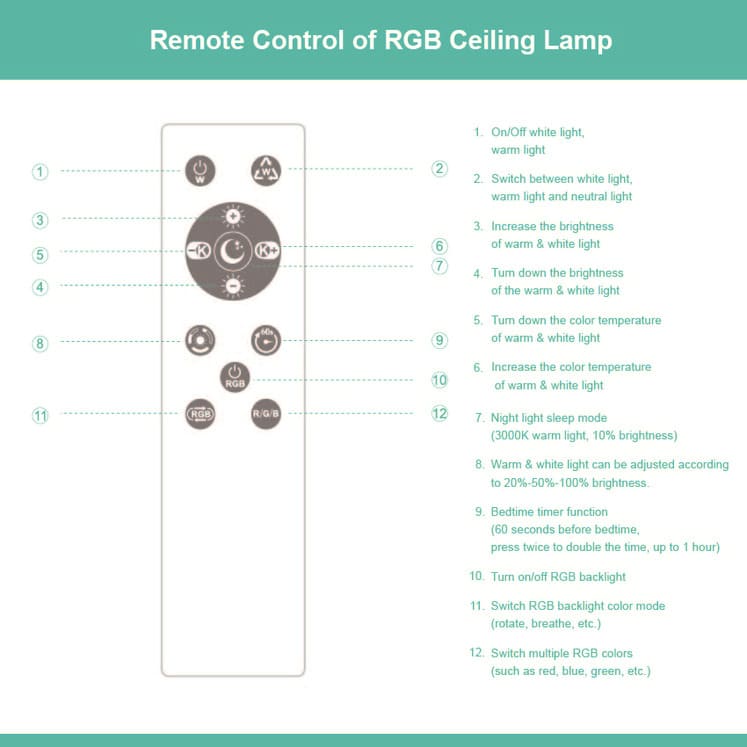

●With remote control.
Technical Data
Optical Specifications
| Rated power | 24W |
| Luminous Flux | 2700 lm |
| Efficacy | 113 lm/W |
| Chips | SMD chips |
| CCT | Backlight RGB /Panel 3000K, 4000K, 6500K |
| CRI | 80 |
| Beam Angle | 120° |
Electrical and Mechanical Specifications
| Input Voltage | 200-240V AC 50/60Hz |
| Power Consumption | 24W |
| Power Factor | 0.9 |
| Surge Protection | Line-to-line 1KV |
| Size(mm) | D300*H37mm |
| Cover Lens | PC diffuser |
| Housing | ABS |
System Specifications
| Power | AC line |
| Control Mode | ON/OFF &Remote control |
| Installation | Surface mounting |
| Operating Temperature | −20°C to +60°C |
| Storage Temperature | −20°C to +80°C |
| Environment | Indoor (IP44) |
| Lumen Maintenance | LM80 @25°C - 50,000hrs |
| Safety Approval | CE, ROHS,FCC |
| Warranty | 1 Year |
Due to the special conditions of manufacturing process of LED, the typical data of technical parameters can only reflect statistical figures and do not necessarily correspond to the actual parameters of each single product which could differ from typical data.
Exceeding maximum ratings for operation voltage will cause hazardous overload and will likely destroy the LED module. Exceeding maximum ratings for operation and storage temperature will reduce expected life time or destroy the LED module.
Dimensions
| No. | Watts | φ * H (mm) | Net Weight (kg) |
| 1 pack | 24W | D300*H37 | 0.91 |
| 2 pack | 24W | D300*H37 | 1.7 |
| No. | Inner box size(cm) | Outer carton size(cm) | Package Weight(kg) |
| 1 pack | 32.5*31.2*4.7cm,1 PC | 34*34*60cm, 13 PCS | 13.5 |
| 2 pack | 32.5*31.2*8 cm,2 PCS | 34*34*60cm, 14 PCS | 13 |
Applications
